On-site PSA Nitrogen Generator offers convenience for your industrial applications. The machine can be started as long as it is connected to the 230v/50hz power supply, eliminating the need for constant monitoring. With air as the raw material—available in abundance—PSA technology offers a 10-20% reduction in obtaining nitrogen costs, The PSA nitrogen generator is sufficient to meet your production line’s nitrogen demands.
The principle of a Pressure Swing Adsorption (PSA) Nitrogen Generator is to separate nitrogen gas from compressed air and convert it into the nitrogen capacity, purity, and pressure specifications you require. The PSA method is a cost-effective alternative to cryogenic air separation, dewar bottles, and bottled nitrogen. PSA eliminates safety and operational issues associated with high-pressure cylinders.
Are you still unsure about which nitrogen solution to choose?
Let’s compare PSA nitrogen generators, liquid nitrogen, and bottled nitrogen gas to help you make an informed decision.
| Item | PSA nitrogen genrator | Liquid nitrogen | Bottled nitrogen gas |
| Equipment |  |
 |
 |
| Safety | Nitrogen output pressure is adjustable, flow rate and purity are stable, the working pressure is low, high reliability, safe and stable nitrogen supply is guaranteed. |

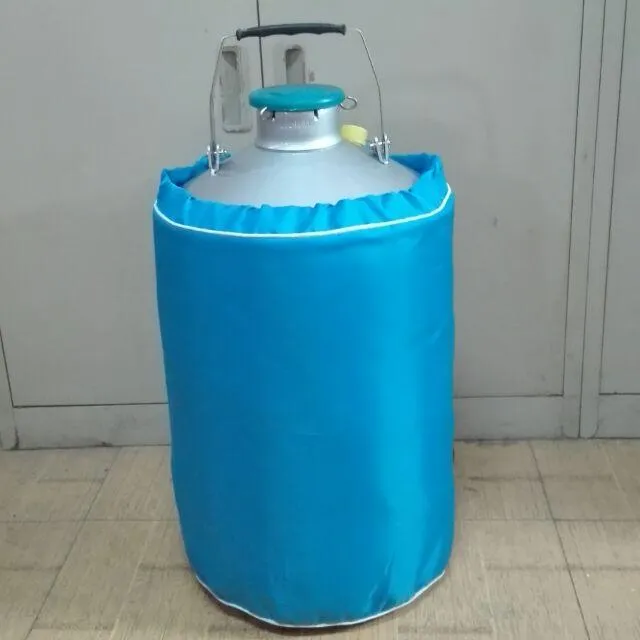

When transporting and dispensing liquid nitrogen, the operator must be professionally trained and well-protected to carry out the operation due to the huge volume ratio of liquid nitrogen vaporization and easy to leak. |

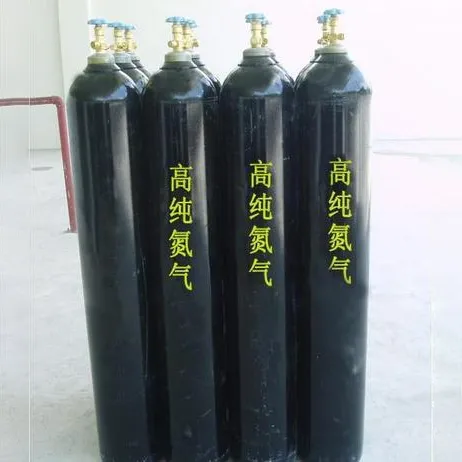

Nitrogen supply process requires bottle change operation, unstable nitrogen supply pressure, high filling pressure of bottled nitrogen, and potential explosion danger in case of strong vibration and collision. |
| Convenience | Intelligent start-stop, plug and play, stable quality and purity, qualified nitrogen can directly enter the pipeline system. |
Liquid nitrogen has extremely strict requirements for transportation and storage, and the operation process is dangerous. | Complicated management, needs to purchase and transport at irregular intervals, and the cylinders need to be tested and replaced regularly. |
| Reliability | Nitrogen purity, flow rate, and pressure can be detected and displayed online, and can be monitored remotely. |
The purity of each batch of products fluctuates and is unstable, and the purity of nitrogen cannot be guaranteed. | The purity of each batch of products fluctuates and is unstable, and the purity of nitrogen cannot be guaranteed. |
| Staffing equipped | Intelligent control, no need to be manned | Specialized personnel are required to be on duty. | Complicated management of cylinders |
| Transportation cost | On-site nitrogen production, no need for post-transportation | Repeated transportation is required in the later stage | Repeated transportation in the later stage |

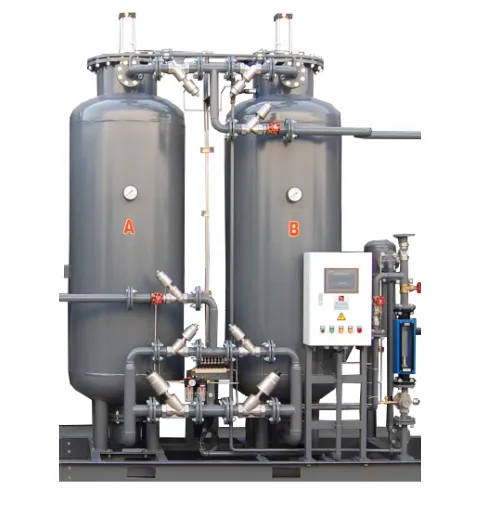

What is a Pressure Swing Adsorption (PSA) Generator?
A Pressure Swing Adsorption (PSA) nitrogen generator is designed to produce nitrogen gas directly on-site. Utilizing the PSA process, which uses molecular sieves to adsorb oxygen from compressed air, efficiently separates nitrogen from the air, delivering a high-purity nitrogen gas stream. The nitrogen produced is then passed through a buffer tank to stabilize the flow speed. PSA generators offer a practical, cost-effective solution to on-demand nitrogen production with minimal ongoing operational costs.
Why Choose BODA GAS for Your PSA Nitrogen Generator Requirements?
- The adsorption tower and the overall equipment structure design are reasonable. The plate thickness of the adsorption tower is increased.
- With over 23 years of experience with internal components, we’ve thoroughly considered measures to prevent the powdering of carbon molecular sieves that are caused by high-speed airflow impact.
- Production process details.
- All instrument pipes are made of 304 stainless steel, ensuring aesthetic, reliability, and ease of equipment fault diagnosis.
- PLC adopts the Siemens brand, and all angle seat valves are made of stainless steel.
- An automatic unqualified purity venting system ensures that unqualified nitrogen gas does not enter the nitrogen use-end.
- Cylinder alarm function: It can follow up and tighten according to the subsidence of the molecular sieves. Alarm in time at the preset alarming point to prevent other serious faults.
- High-performance molecular sieves are selected, making the system more energy-efficient.
- When designing the nitrogen generator, we ensure the output has a certain margin.
- Advanced and comprehensive testing tools. Every piece of equipment undergoes complete inspection before leaving the factory.

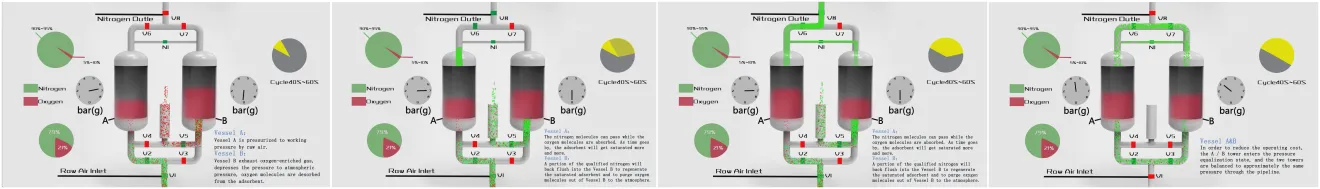

How Does an Industrial PSA Nitrogen Generator Work?
Industrial PSA nitrogen generators work by compressing ambient air and passing it through a series of adsorption towers filled with molecular sieves. The sieve selectively adsorbs oxygen and other impurities, allowing the nitrogen to pass through. The system then separates the nitrogen from the air, based on pressure variations, in a process called pressure swing adsorption. The nitrogen gas is then purified and delivered at the desired purity and pressure to your industrial applications. This efficient method ensures a reliable and cost-effective nitrogen supply without the need for external nitrogen cylinders.

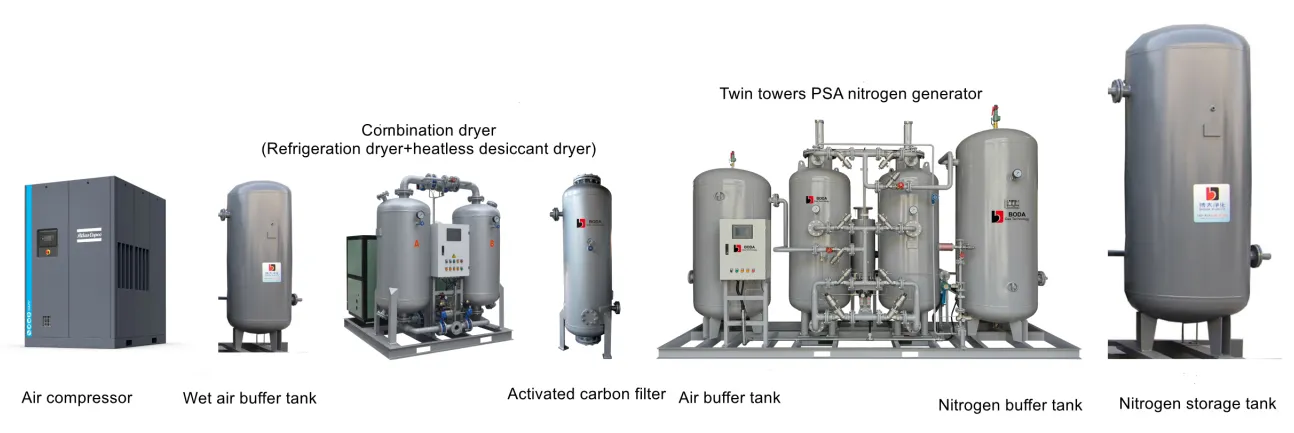

PSA Nitrogen Generator Whole System Specifications
What is a PSA Tower in a Nitrogen Plant?
A PSA tower, or adsorption tower, is a key component of a PSA nitrogen generator. These towers are filled with molecular sieve material, which is designed to adsorb oxygen and other gases present in the compressed air. During the PSA process, air is directed into the tower at high pressure, where the sieve material selectively adsorbs oxygen molecules, allowing the nitrogen to pass through. Once the sieve material becomes saturated with oxygen, the pressure in the tower is reduced, and the oxygen is released. This cycle is repeated to continuously produce high-purity nitrogen gas for your industrial applications.

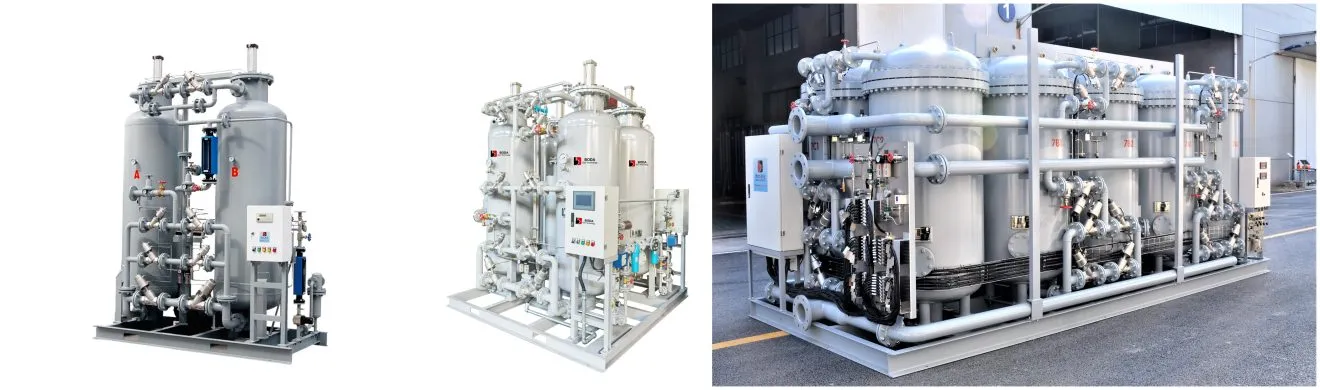

In our design process, we can make double-tower, four-tower, and other multi-tower structures according to customer demand, which can save space and cost based on meeting the customer’s large nitrogen capacity needs.
In conclusion, PSA nitrogen generators from BODA GAS provide a reliable, cost-effective, and efficient solution for on-site nitrogen production. With over 23 years of industry experience, we are committed to delivering high-quality products that meet your specific needs.
